NEXGEN Electromech is a trusted Weidmuller Relay & Base Distributor in West Bengal, supplying genuine RIDERSERIES RCL relays and bases for PLC interfacing, automation, signal switching, and industrial control panel applications. Our range includes 1 CO and 2 CO relay modules with pluggable relay, electronics, and retainer clip designs for easy maintenance and replacement. Sourced through authorized Weidmuller channels, these relay solutions deliver dependable switching performance and electrical isolation. Send us your coil voltage and contact configuration requirements, and we'll recommend the right relay-base combination with project-specific pricing.
Looking for a reliable relay and base combination to isolate and switch your control circuits in West Bengal? Relays and bases are manufactured to switch circuits safely while keeping the control and load sides electrically isolated, used in PLC interfacing, automation, and signal switching across sheds, factories, and process plants.

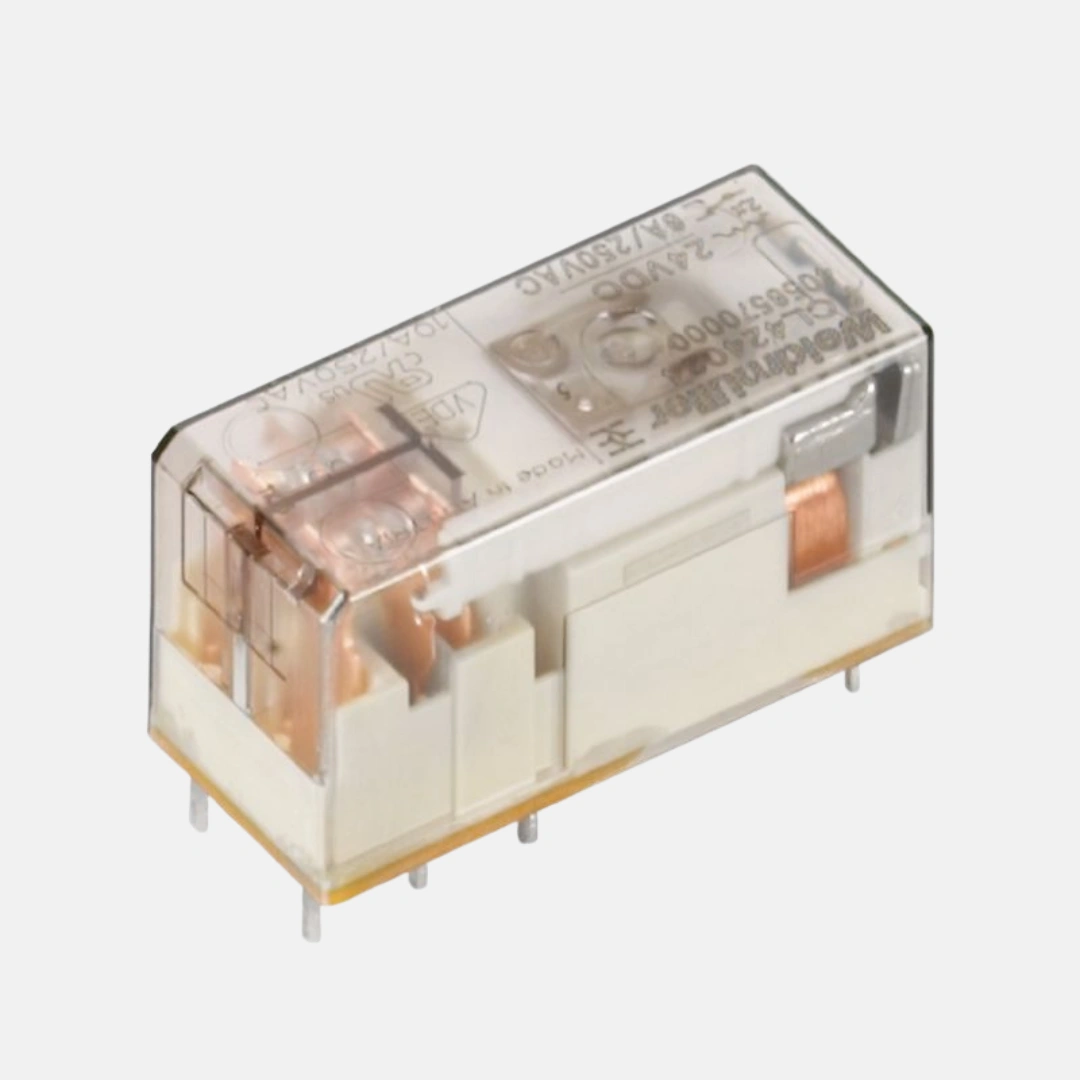

We are Relay & Base distributors in West Bengal, and the units we supply come from Weidmuller under the RIDERSERIES RCL range, built as a modular system where the relay, electronics, and retainer clip are all pluggable for easy replacement. Our range includes 1 CO and 2 CO contact relays with 24V DC or 24V AC coils, switching loads up to 16A at 24V DC or 230V AC. Available in different coil voltages and contact configurations, you don't have to compromise on switching reliability across your panel.
We are also Relay & Base suppliers in West Bengal, with common coil voltages and contact configurations in regular stock. If your project is on a tight schedule, we can confirm availability before you finalize your order. Delivery goes out across West Bengal and neighboring states, and for larger panel-building projects, we can coordinate phased supply to match your assembly line.
As Relay & Base traders in West Bengal, we quote based on contact configuration, coil voltage, mounting type, and quantity. If you're weighing options between a 1 CO relay and a 2 CO relay for a particular application, our team can walk you through the difference so you install the right unit the first time.
Send us your coil voltage and contact requirement for a price.
|
Specification |
Details |
|
Brand |
Weidmuller (RIDERSERIES RCL) |
|
Contact Configuration |
1 CO (SPDT) or 2 CO, gold-plated silver nickel contacts |
|
Coil Voltage |
24V DC or 24V AC, with multi-voltage options up to 230V UC |
|
Contact Rating |
Up to 16A at 24V DC or 230V AC |
|
Coil Resistance |
Approx. 350 Ω ±10% (AC coil models) |
|
Operate / Release Time |
Operate approx. 7ms; Release approx. 4ms |
|
Operating Temperature |
-40°C to +70°C |
|
Storage Temperature |
-40°C to +85°C |
|
Mounting |
DIN Rail, plug-in connection |
|
Connection Type |
Screw or tension-clamp terminal |
|
Dielectric Strength |
5 kVeff (input to output) |
|
Protection Degree |
IP 20 |
|
Standards |
Complies with IEC 61810-1, UL508; ISI-compliant channel |
|
Minimum Order |
Available for both single-unit and bulk panel-building orders |
|
Delivery |
Pan India |
|
Warranty |
As per manufacturer's standard terms |
Find answers to common questions about our products and solutions.
We supply 1 CO (SPDT) and 2 CO relay configurations with multiple coil voltage options for industrial applications.
1 CO relay has only one contact capable of changing position, whereas the 2 CO relay has a pair of contacts that can change direction, providing for more flexibility in switching.
Gold plated contacts prevent rusting of contacts and ensure correct operation.
Yes, Weidmuller RIDERSERIES relays are now commonly utilized for the PLC digital output interfacing and other industrial automation applications.
Yes, we supply these products across India and also support export requirements in selected international markets.
